Mings electrical composite suspension insulator 325kv for wire pole

Mings electrical composite suspension insulator 325kv for wire pole

Trade Terms
EXW, FOB, CIF, CNF, DDU, DDP, etc.
Supply Ability
100000pcs / Month
Port
Guangzhou,Shenzhen
Payment
L/C,D/A,D/P,T/T,western union, moneygram, PAYPAL payments for offline orders.
Packaging Detail
Carton Packing
Shipping
BY SEA, BY AIR OR BY EXPRESS
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Captcha

Loading verification code...

Please complete verification first

Enterprise Strength
  • Mings Electricity Technology runs a comprehensive service system covering from pre-sales to sales and after-sales. Customers can rest assured during the purchase.
Product Comparison
Mings Electricity Technology carries out strict quality monitoring and cost control on each production link of power transmission, from raw material purchase, production and processing and finished product delivery to packaging and transportation. This effectively ensures the product has better quality and more favorable price than other products in the industry.Compared with products in the same category,Mings Electricity Technology's power transmission's outstanding advantages are as follows.
Company Advantages
1. Compliance with recognized safety standards is necessary for Mings composite suspension insulator to be recognized. These can be in the form of test reports from recognized testing laboratories.
2. In our strict quality assurance procedures, any defects in the product are avoided or eliminated.
3. The food barbequed with the help of this product tastes excellent and flavorful. People who have bought this product say they are considering more options from us.
4. The product is lightweight and easy to carry around. People can put it into their car boot and carry it for outdoor activities without too much inconvenience or burden.


Materials of line post polymer insulator



Spec&Type


Rated voltage (kV)


mechanical tensionload(kN)


     Rated reverser load(kNm)

H
Structure height(mm)

Minnominal creepage distance(mm)

Full wave lighting impluse withstand voltage(peak value)not less than(kV)

1min power frequency wet withstand voltage(kV)

FZSW-10/4

10

4

0.6

215

300

75

42

FZSW-24/8

24

8

1.2

340

750

150

65

FZSW-35/5

35

5

1.8

400

750

185

80

FZSW-35/6

35

6

2

450

1050

230

95

FZSW-66/6

66

6

1.5

760

1900

410

185

FZSW-66/8

66

8

2

760

2010

410

185

FZSW-110/10

110

10

4

1200

2900

500

230

FZSW-220/10

220

10

4

2400

7060

1000

395


PRODUCT  DESCRIPTION


Mings Electricity Technology (Dongguan) Ltd. is conveniently situated in Dongguan, Guangdong Province of China – a world-renowned city for manufacturing.




1-Incoming inspection


2-Material processing


3-Injection


4-Crimping



5-Appearance treatment


6-Mechanical performance testing

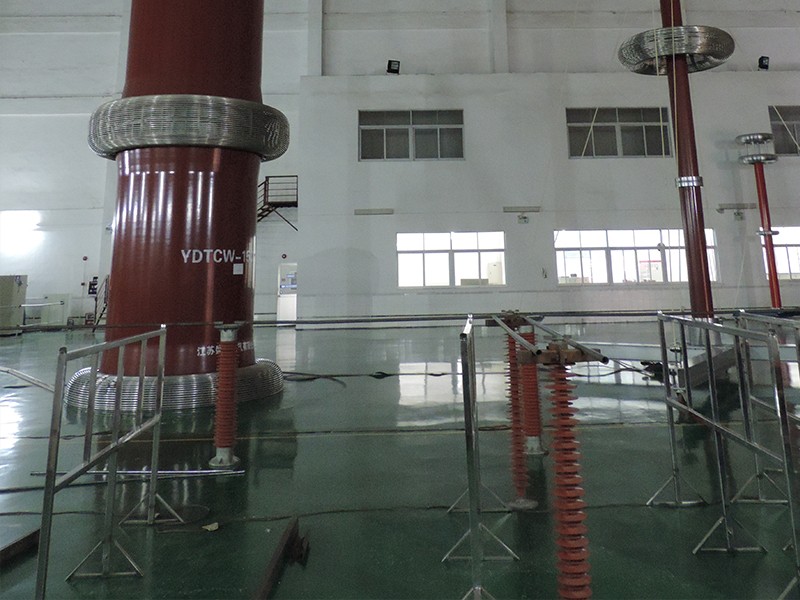

7-Electrical performance testing


8-Line Post polymer insulator 10-220KV


Materials of line post polymer insulator

Silicon Rubber for sheds/housing.

Glass-fiber reinforced epoxy resin rod (ECR type) for core.

Hot dip galvanized cast steel for metal fittings.

5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).

IEC / ANSI / GB standard.


INSTALLATION   INSTRUCTION


Mings has R&D and operations teams that consist of a group of elite experts, scholars, researchers, and experienced professionals who are influential in

both domestic and international power transmission and distribution industry.


Note

  The transportation and installation of the insulator shall be taken good care without any throwing or collision ,fiction with various sundries(wires,iron plates and tools etc.)and solid material.
  When suspending the composite insulator,the knot shall be made on the attachment at the end.Knots on shed or sheath are strictly prohibted.When the rope has to be contacted with the shed or sheath,
  the contacting area shall be pached with soft cloths.
  Never apply the composite insulator as the assistant tool for the wire distribution and collection and collection in case that the insulator can be damages by impact or bending moment.
  Do not step on the insulator shed with foot.
  When installing the grading ring,attention shall be attached on the adjustments to make sure that the ring is vertical with the axial of the insulator.
  And for opening grading ring,the opening directions at both ends shall be consistent to facilitate the discharging and protect the shed.


PRODUCT   ADVANTAGE


The company is committed to sharing expertise and technology with the Belt and Road countries and providing them with

comprehensive power transmission and distribution solutions to achieve mutually beneficial development.

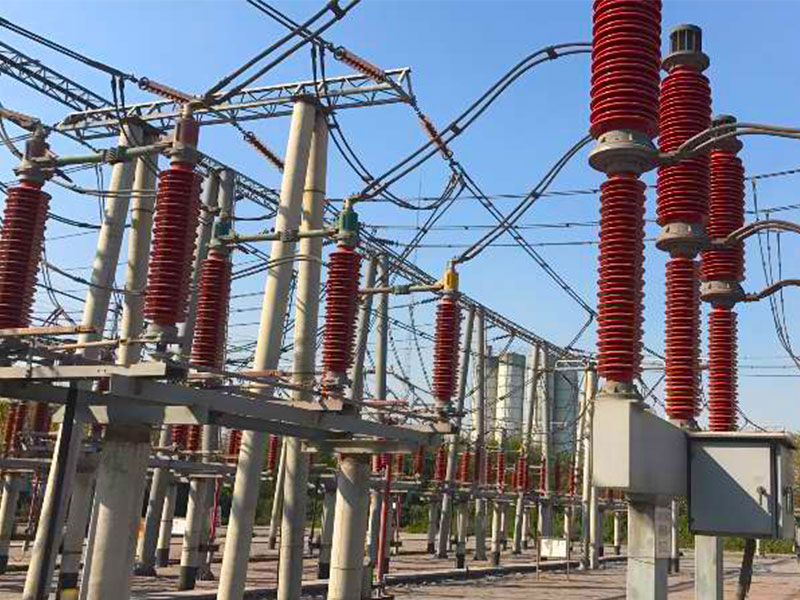

APPLICATIONS


Mings is dedicated to establishing a top platform for electricity & power transmission and distribution solutions,

with the purpose of better serving the Belt and Road countries’ infrastructure construction and development strategy.



Company Features
1. Mings Electricity Technology (Dongguan) Ltd. is an excellent silicone rubber insulator supplier in China and has undertook many composite suspension insulator production tasks for years.
2. It turns out that Mings is experienced in introducing high technology.
3. Dedication to customer success is a core value that affects everything we do. We quickly react to customers and their needs and make regular communication with customers, which helps us close gaps between customer expectations and our services. Over the years, Mings Electricity Technology (Dongguan) Ltd. has been consistent in providing honest services for every customer. Call now!
