Mings safe lightning arrester rear connectors on sale for power transmission

Mings safe lightning arrester rear connectors on sale for power transmission

Mings safe lightning arrester rear connectors on sale for power transmission

Port
Guangzhou,Shenzhen
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. Mings lightning arrester rear connectors is made of premium woods. These woods are strictly selected by our experts. These wood come from the deep forest and then undergo a series of performance tests. Its weight can greatly reduce the labor of workers in transportation and field operation
2. The product has lots of advantages and thus will have more and more applications in the future. The only impact of a lightning strike on it is some white electric erosion; there is no change in its insulating property
3. It is tested before delivery to ensure 100% quality right. It is designed according to IEC, ANSI, and GB international standards
4. All products that fail the quality test have been eliminated. It is technically and economically suitable for wet areas
5. Quality is the top priority in our business strategy. It is less prone to biological deterioration

Mings safe lightning arrester rear connectors on sale for power transmission-1

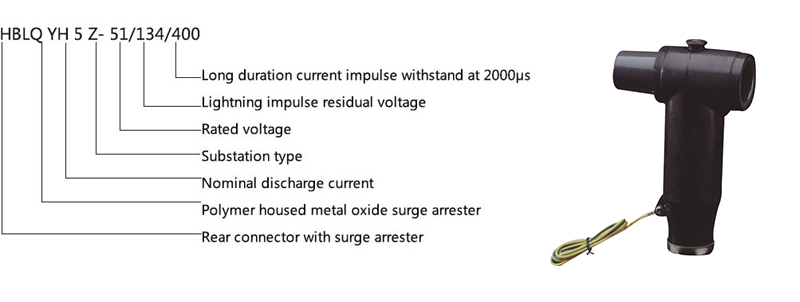

Item

Unit

HBLQYH5Z

-51/134/400

HBLQYH5Z

-51/134/600

HBLQYH5Z

-51/134/800

System nominal voltage

kV

35

35

35

Rated voltage of surge arrester

kV

51

51

51

Continuous operation voltage

kV

40.8

40.8

40.8

Nominal discharge current

kA

5

5

5

Reference voltage(1mA.DC)

≥Kv

73

73

73

Long duration current impulse withstand at 2000μs

A

400

600

800

4/10μs High impulse withstand current

≤kV

100

100

100

Lightning impulse residual voltage

≤kV

134

134

134

Switching impulse residual voltage

≤kV

114

114

114


Company Features
1. The lightning arrester rear connectors which is manufactured with high quality and priced at competitive price accounts for renowned Mings Electricity Technology (Dongguan) Ltd..
2. Mings Electricity Technology (Dongguan) Ltd. insists on researching and developing new products.
3. With its mighty strength and tenet of insulated protective cap , Mings Electricity Technology (Dongguan) Ltd. provides all-round premium services for its costumers. Get price!
