Suspension composite polymer insulator 10-500KV
Type | Rated voltage （kV） | mechanical tensionload（kN） | Structure of coupling marks | Structure height（mm） | Min Electricarc distance（mm） | Minnominal creepage distance（mm） | Full wave lighting impluse withstand voltage（peak value）not less than（kV） | 1min power frequency wet withstand voltage not less than(kV) |
FXBW4-10/70 | 10 | 70 | 16 | 410±15 | 200 | 500 | 95 | 55 |
FXBW4-10/100 | 10 | 100 | 16 | 450±15 | 200 | 500 | 95 | 55 |
FXBW4-20/70 | 20 | 70 | 16 | 470±15 | 280 | 750 | 170 | 75 |
FXBW4-20/100 | 20 | 100 | 16 | 500±15 | 280 | 750 | 170 | 75 |
FXBW4-35/70 | 35 | 70 | 16 | 606±15 | 410 | 1280 | 230 | 95 |
FXBW4-35/100 | 35 | 100 | 16 | 646±15 | 424 | 1280 | 230 | 95 |
FXBW4-35/120 | 35 | 120 | 16 | 646±15 | 424 | 1280 | 250 | 95 |
FXBW4-66/70 | 66 | 70 | 16 | 806±15 | 650 | 2130 | 410 | 185 |
FXBW4-66/100 | 66 | 100 | 16 | 846±15 | 650 | 2130 | 410 | 185 |
FXBW4-66/120 | 66 | 120 | 16 | 886±15 | 650 | 2130 | 410 | 185 |
FXBW4-110/70 | 110 | 70 | 16 | 1180±15 | 1005 | 3150 | 550 | 230 |
FXBW4-110/100 | 110 | 100 | 16 | 1240±15 | 1005 | 3150 | 550 | 230 |
FXBW4-110/120 | 110 | 120 | 16 | 1260±15 | 1005 | 3150 | 550 | 230 |
FXBW4-110/160 | 110 | 160 | 20 | 1300±15 | 1050 | 3600 | 550 | 230 |
FXBW4-220/70 | 220 | 70 | 16 | 2075±30 | 1905 | 6300 | 1000 | 395 |
FXBW4-220/100 | 220 | 100 | 16 | 2115±30 | 1905 | 6300 | 1000 | 395 |
FXBW4-220/120 | 220 | 120 | 16 | 2240±30 | 2000 | 6600 | 1000 | 395 |
FXBW4-220/160 | 220 | 160 | 20 | 2240±30 | 1905 | 6900 | 1000 | 395 |
FXBW4-330/100 | 330 | 100 | 16 | 2990±40 | 2600 | 9500 | 1425 | 570 |
FXBW4-330/120 | 330 | 120 | 16 | 2990±40 | 2600 | 9500 | 1425 | 570 |
FXBW4-330/160 | 330 | 160 | 20 | 2990±40 | 2600 | 9500 | 1425 | 570 |
FXBW4-330/240 | 330 | 240 | 20 | 3050±40 | 2600 | 9500 | 1425 | 570 |
FXBW4-500/100 | 500 | 100 | 16 | 4450±50 | 4000 | 14500 | 2250 | 740 |
FXBW4-500/120 | 500 | 120 | 16 | 4450±50 | 4000 | 14500 | 2250 | 740 |
FXBW3-500/160 | 500 | 160 | 20 | 4030±50 | 3650 | 13750 | 2050 | 740 |
FXBW4-500/160 | 500 | 160 | 20 | 4450±50 | 4000 | 15000 | 2250 | 740 |
FXBW4-500/300 | 500 | 300 | 24 | 4340±50 | 3650 | 13750 | 2050 | 740 |
FXBW4-500/400 | 500 | 400 | 28 | 4450±50 | 4000 | 15000 | 2250 | 740 |
PRODUCT DESCRIPTION
Mings Electricity Technology (Dongguan) Ltd. is conveniently situated in Dongguan, Guangdong Province of China – a world-renowned city for manufacturing.
6-Mechanical performance testing

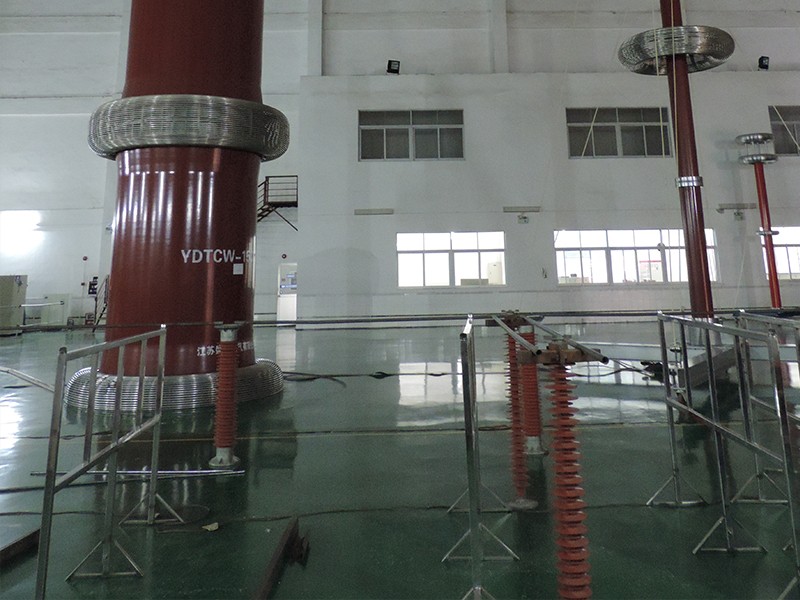

7-Electrical performance testing
8-Suspension composite polymer insulator 10-500kV
Materials of suspension composite polymer insulator
◪ Silicon Rubber for sheds/housing.
◪ Glass-fiber reinforced epoxy resin rod (ECR type) for core.
◪ Hot dip galvanized cast steel for metal fittings.
◪ 5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
◪ IEC / ANSI / GB standard.
