Railway wrist arm insulator
Model | Rated Voltage | Min Tension Failing Load | Min Ben Failing Load | Min Sliding Load | Section Length | Insulating Length | Shed Diameters | Minimum Creepage | Full-Wave Impulse Withstand Voltage (Peak) | 1 Min Dry Power Frequency Withstand Voltage | 1 Min Wet Power Frequency Withstand Voltage | Tube Hole Size |
|
| kV | kN | kN | kN | H | h | D | mm | ≥ | ≥ | ≥ | C |
mm | mm | mm | kV | kV | kV | mm |
FQB-25/8 | 25 | 80 | 8 | 20 | 760±20 | 490 | 165 | 1200 | 270 | 160 | 130 | 51, 62 |
FQBJ-25/8 | 25 | 80 | 8 | 20 | 760±20 | 490 | 165 | 1400 | 290 | 175 | 140 | 51, 62 |
FQBG-25/8 | 25 | 80 | 8 | 20 | 800±20 | 520 | 165 | 1600 | 310 | 190 | 150 | 51, 62 |
FQB-25/12 | 25 | 100 | 12 | 25 | 760±20 | 490 | 180 | 1200 | 270 | 160 | 130 | 62, 72 |
FQBJ-25/12 | 25 | 100 | 12 | 25 | 760±20 | 490 | 180 | 1400 | 290 | 175 | 140 | 62, 72 |
FQBG-25/12 | 25 | 100 | 12 | 25 | 800±20 | 520 | 180 | 1600 | 310 | 190 | 150 | 62, 72 |
FQB-25/16 | 25 | 120 | 16 | 40 | 800±20 | 490 | 192 | 1200 | 270 | 160 | 130 | 62, 72 |
FQBJ-25/16 | 25 | 120 | 16 | 40 | 800±20 | 520 | 192 | 1400 | 290 | 175 | 140 | 62, 72 |
FQBG-25/16 | 25 | 120 | 16 | 40 | 800±20 | 520 | 192 | 1600 | 310 | 190 | 150 | 62, 72 |
FQBJ-25/20 | 25 | 140 | 20 | 40 | 800±20 | 500 | 202 | 1400 | 290 | 175 | 140 | 62, 72 |
FQBG-25/20 | 25 | 140 | 20 | 40 | 800±20 | 500 | 202 | 1600 | 310 | 190 | 150 | 62, 72 |
Model | Rated Voltage | Min Tension Failing Load | Min Ben Failing Load | Min Sliding Load | Section Length | Insulating Length | Shed Diameters | Minimum Creepage | Full-Wave Impulse Withstand Voltage (Peak) | 1 Min Dry Power Frequency Withstand Voltage | 1 Min Wet Power Frequency Withstand Voltage | Tube Hole Size |
|
| kV | kN | kN | kN | H | h | D | mm | ≥ | ≥ | ≥ | C |
mm | mm | mm | kV | kV | kV | mm |
FQBS-25/8 | 3-25 | 80 | 8 | 20 | 850±20 | 490/60 | 165 | 1200/145 | 270/50 | 160/30 | 130/23 | 51, 62 |
FQBSJ-25/8 | 3-25 | 80 | 8 | 20 | 850±20 | 490/60 | 165 | 1400/145 | 270/50 | 175/30 | 140/23 | 51, 62 |
FQBSG-25/8 | 3-25 | 80 | 8 | 20 | 890±20 | 520/60 | 165 | 1600/145 | 310/50 | 190/30 | 150/23 | 51, 62 |
FQBS-25/12 | 3-25 | 100 | 12 | 25 | 850±20 | 490/60 | 180 | 1200/145 | 270/50 | 160/30 | 130/23 | 62, 72 |
FQBSJ-25/12 | 3-25 | 100 | 12 | 25 | 850±20 | 490/60 | 180 | 1400/145 | 270/50 | 175/30 | 140/23 | 62, 72 |
FQBSG-25/12 | 3-25 | 100 | 12 | 25 | 890±20 | 520/60 | 180 | 1600/145 | 310/50 | 190/30 | 150/23 | 62, 72 |
FQBS-25/16 | 3-25 | 120 | 16 | 40 | 890±20 | 490/60 | 192 | 1200/145 | 270/50 | 160/30 | 130/23 | 62, 72 |
FQBSJ-25/16 | 3-25 | 120 | 16 | 40 | 890±20 | 520/60 | 192 | 1400/145 | 270/50 | 175/30 | 140/23 | 62, 72 |
FQBSG-25/16 | 3-25 | 120 | 16 | 40 | 890±20 | 520/60 | 192 | 1600/145 | 310/50 | 190/30 | 150/23 | 62, 72 |
FQBSJ-25/20 | 3-25 | 140 | 20 | 40 | 890±20 | 500/60 | 202 | 1600/145 | 270/50 | 175/30 | 140/23 | 62, 72 |
FQBSG-25/20 | 3-25 | 140 | 20 | 40 | 890±20 | 500/60 | 202 | 1600/145 | 310/50 | 190/30 | 150/23 | 62, 72 |
Railway Tensile Insulator
Model | Rated Voltage | Specified Cantilever Load | Section Length | Insulating Length | Shed Diameters | Minimum Creepage | Full-Wave Impulse Withstand Voltage (Peak) | 1 Min Dry Power Frequency Withstand Voltage | 1 Min Wet Power Frequency Withstand Voltage |
|
| kV | kN | H | h | D | L | ≥ | ≥ | ≥ |
mm | mm | mm | mm | kV | kV | kV |
FQX-25/70, 100, 120-QH | 25 | 70, 100, 120 | 700± 20 | 500 | 145 | 1200 | 270 | 160 | 130 |
FQXJ-25/70, 100, 120-QH | 25 | 70, 100, 120 | 750± 20 | 550 | 145 | 1400 | 290 | 175 | 140 |
FQXG-25/70, 100, 120-QH | 25 | 70, 100, 120 | 800± 20 | 600 | 145 | 1600 | 310 | 190 | 150 |
FQX-25/160-QH | 25 | 160 | 750± 20 | 500 | 100 | 1200 | 270 | 160 | 130 |
FQXJ-25/160-QH | 25 | 160 | 800± 20 | 550 | 100 | 1400 | 290 | 175 | 140 |
FQXG-25/160-QH | 25 | 160 | 850± 20 | 600 | 100 | 1600 | 310 | 190 | 150 |
FQX-25/200-QH | 25 | 200 | 750± 20 | 500 | 100 | 1200 | 270 | 160 | 130 |
FQXJ-25/200-QH | 25 | 200 | 800± 20 | 550 | 100 | 140 | 290 | 175 | 140 |
FQXG-25/200-QH | 25 | 200 | 850± 20 | 600 | 100 | 1600 | 310 | 190 | 150 |
Model | Rated Voltage | Tension Failing Load | Section Length | Insulating Length | Shed Diameters | Minimum Creepage | Full-Wave Impulse Withstand Voltage (Peak) | 1 Min Dry Power Frequency Withstand Voltage | 1 Min Wet Power Frequency Withstand Voltage |
|
| kV | kN | H | h | D | L | ≥ | ≥ | ≥ |
mm | mm | mm | mm | kV | kV | kV |
FQXS-25/70, 100, 120-QH | 25 | 70, 100, 120 | 790± 20 | 500/60 | 145 | 1200/145 | 270/50 | 160/30 | 130/23 |
FQXSJ-25/70, 100, 120-QH | 25 | 70, 100, 120 | 840± 20 | 550/60 | 145 | 1400/145 | 290/50 | 175/30 | 140/23 |
FQXSG-25/70, 100, 120-QH | 25 | 70, 100, 120 | 890± 20 | 600/60 | 145 | 1600/145 | 310/50 | 190/30 | 150/23 |
FQXS-25/160-QH | 25 | 160 | 840± 20 | 500/56 | 100 | 1200/145 | 270/50 | 160/30 | 130/23 |
FQXSJ-25/160-QH | 25 | 160 | 890± 20 | 550/56 | 100 | 1400/145 | 290/50 | 175/30 | 140/23 |
FQXSG-25/160-QH | 25 | 160 | 940± 20 | 600/56 | 100 | 1600/145 | 310/50 | 190/30 | 150/23 |
FQXS-25/200-QH | 25 | 200 | 840± 20 | 500/56 | 100 | 1200/145 | 270/50 | 160/30 | 130/23 |
FQXSJ-25/200-QH | 25 | 200 | 890± 20 | 550/56 | 100 | 1400/145 | 290/50 | 175/30 | 140/23 |
FQXSG-25/200-QH | 25 | 200 | 940± 20 | 600/56 | 100 | 1600/145 | 310/50 | 190/30 | 150/23 |
PRODUCT DESCRIPTION
Mings Electricity Technology (Dongguan) Ltd. is conveniently situated in Dongguan, Guangdong Province of China – a world-renowned city for manufacturing.
6-Mechanical performance testing

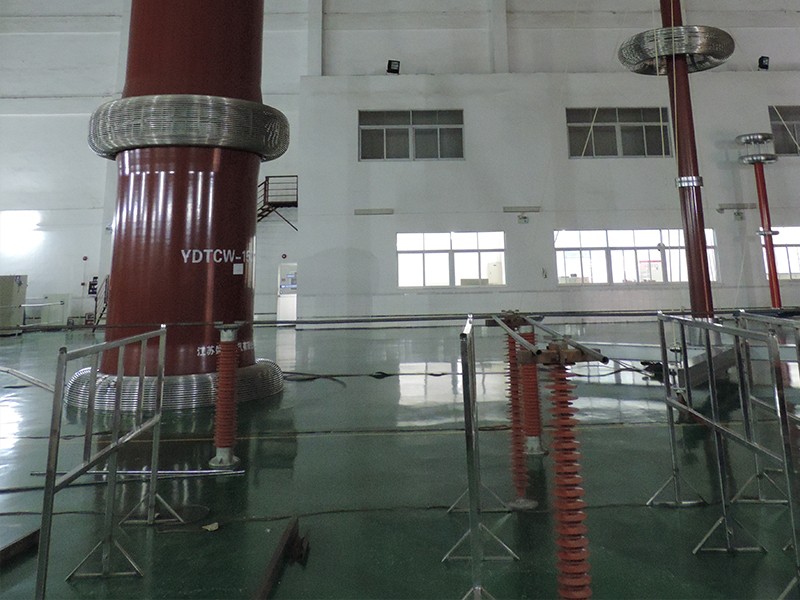

7-Electrical performance testing
8-Railway polymer insulator 3-25KV
Materials of railway polymer insulator
◪ Silicon Rubber for sheds/housing.
◪ Glass-fiber reinforced epoxy resin rod (ECR type) for core.
◪ Hot dip galvanized cast steel for metal fittings.
◪ 5000hours aging test from STRI Sweden & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
◪ IEC / ANSI / GB standard.
